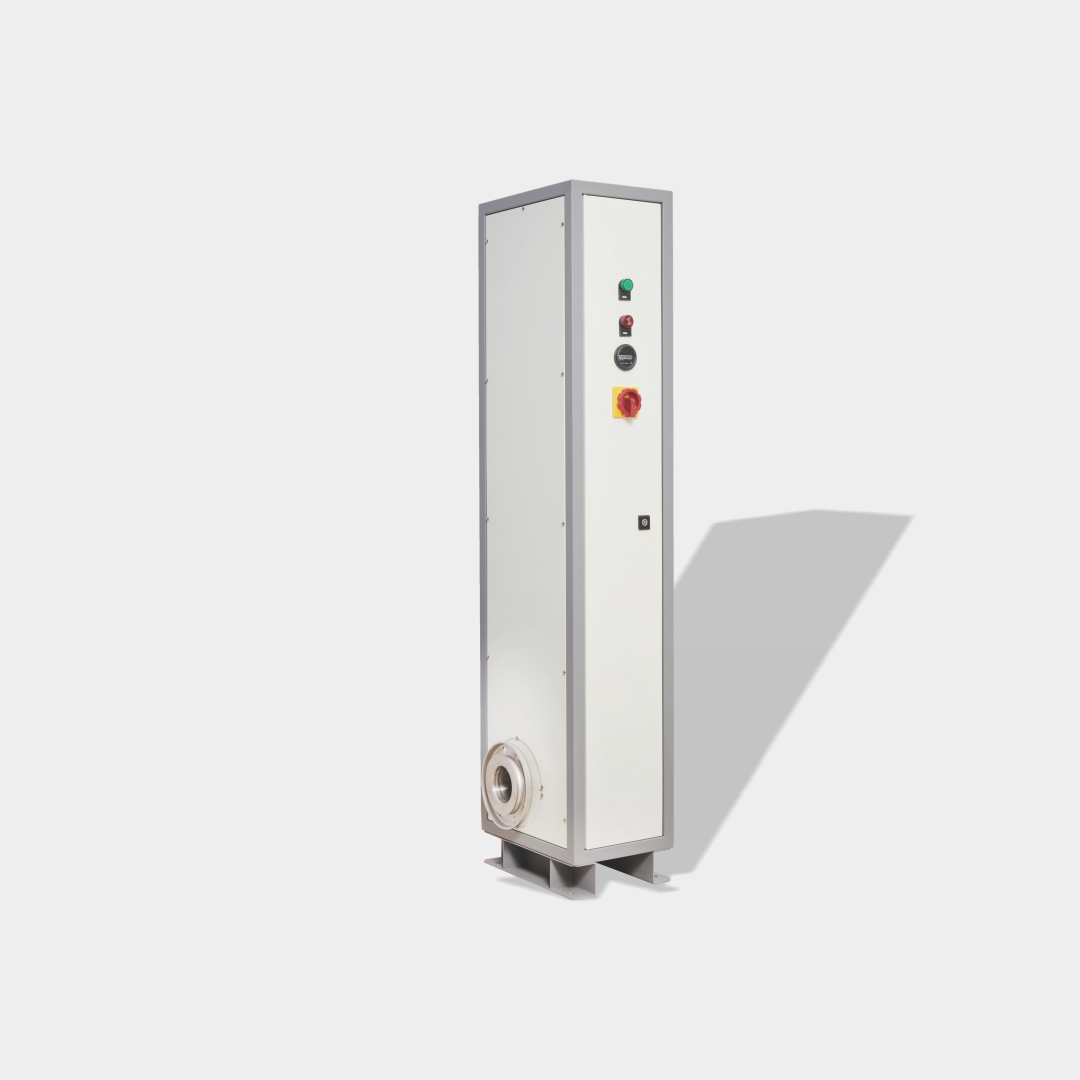

XP Series AOP System

High-Capacity Advanced Oxidation for Large Installations

The XP Series extends the AOP treatment range to higher capacities, with flow rates from 52 to 110 m³/h. Designed for large municipal and industrial applications, the XP Series delivers the same hydroxyl radical treatment performance in a system architecture optimized for high-volume continuous operation.

Like the X Series, each XP system includes a complete package of ozone generation, UV reactor, injection, mixing, destruct, and PLC + HMI automated controls.

Key Features

High-capacity advanced oxidation: 52 to 110 m³/h
Hydroxyl radical generation at 2.8V oxidation potential
Full integrated system with PLC + HMI controls
Designed for continuous large-scale operation
Complete contaminant degradation capability
Automated monitoring, control, and data logging
Scalable design for plant expansion

Technical Specification

Parameter	Specification
Flow Rate Range	52 – 110 m³/h
Oxidation Method	UV + Ozone (hydroxyl radicals)
Oxidation Potential	2.8V
Control System	PLC + HMI touch panel
Byproducts	CO₂ + H₂O only
Power Supply	220-380V / 50Hz

MODEL	FLOW RATE (m³/h)	CONNECTION SIZE	REACTOR DIMENSIONS (W×D×H mm)	MATERIAL	LAMP TYPE	LAMP LIFE (h)	POWER (W)
AH-AOP-XP52	52	DN80	700 × 400 × 1350	SS304 (optional SS316L)	Amalgam UV lamp / Low-pressure high-intensity UV lamp	16,000 / 9,000	560
AH-AOP-XP70	70	DN100	800 × 450 × 1585				820
AH-AOP-XP90	90	DN100	800 × 450 × 1585				1080
AH-AOP-XP110	110	DN150	900 × 500 × 1585				1320

Applications

Large municipal water treatment plants
Major industrial wastewater treatment
Pharmaceutical and chemical manufacturing effluent
Water reclamation and reuse facilities
Large-scale groundwater remediation
