B3 Series Ozone Generator

Industrial Corona Discharge Ozone Generation

The B3 Series is Aquahelix’s primary industrial ozone generator line, using corona discharge technology to produce ozone from high-purity oxygen. With output capacities ranging from 5 to 300 g/h and ozone concentrations up to 105 mg/L, the B3 Series covers applications from small water treatment installations to large municipal and industrial systems.

Each unit is designed for reliable, continuous operation with precise ozone output control, ensuring consistent treatment performance across varying demand conditions.

Key Features

Corona discharge ozone generation technology
Output range: 5 to 300 g/h
Ozone concentration: 0 to 105 mg/L

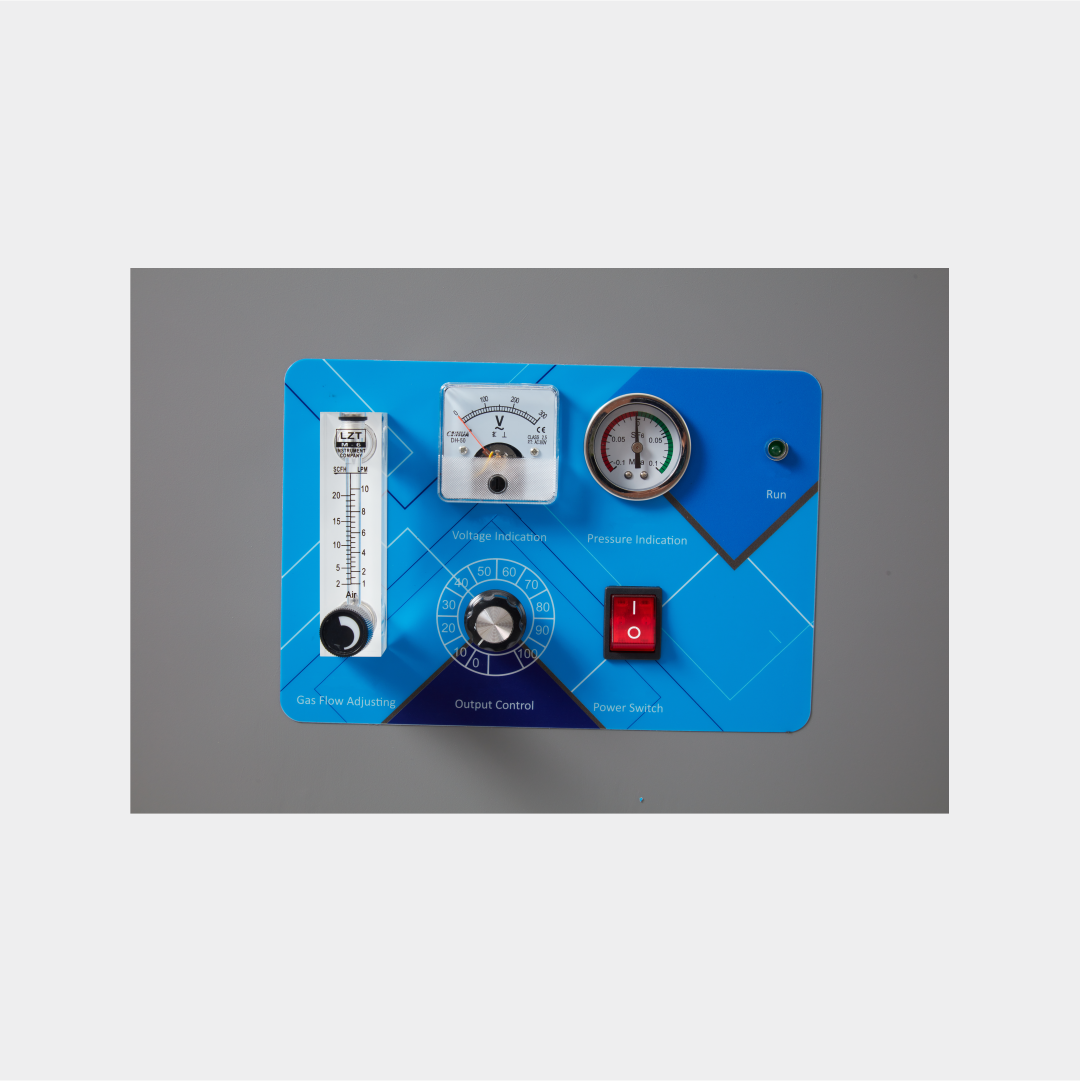

Adjustable output for precise dosing control
Designed for continuous industrial operation
Compatible with PSA oxygen or external oxygen supply

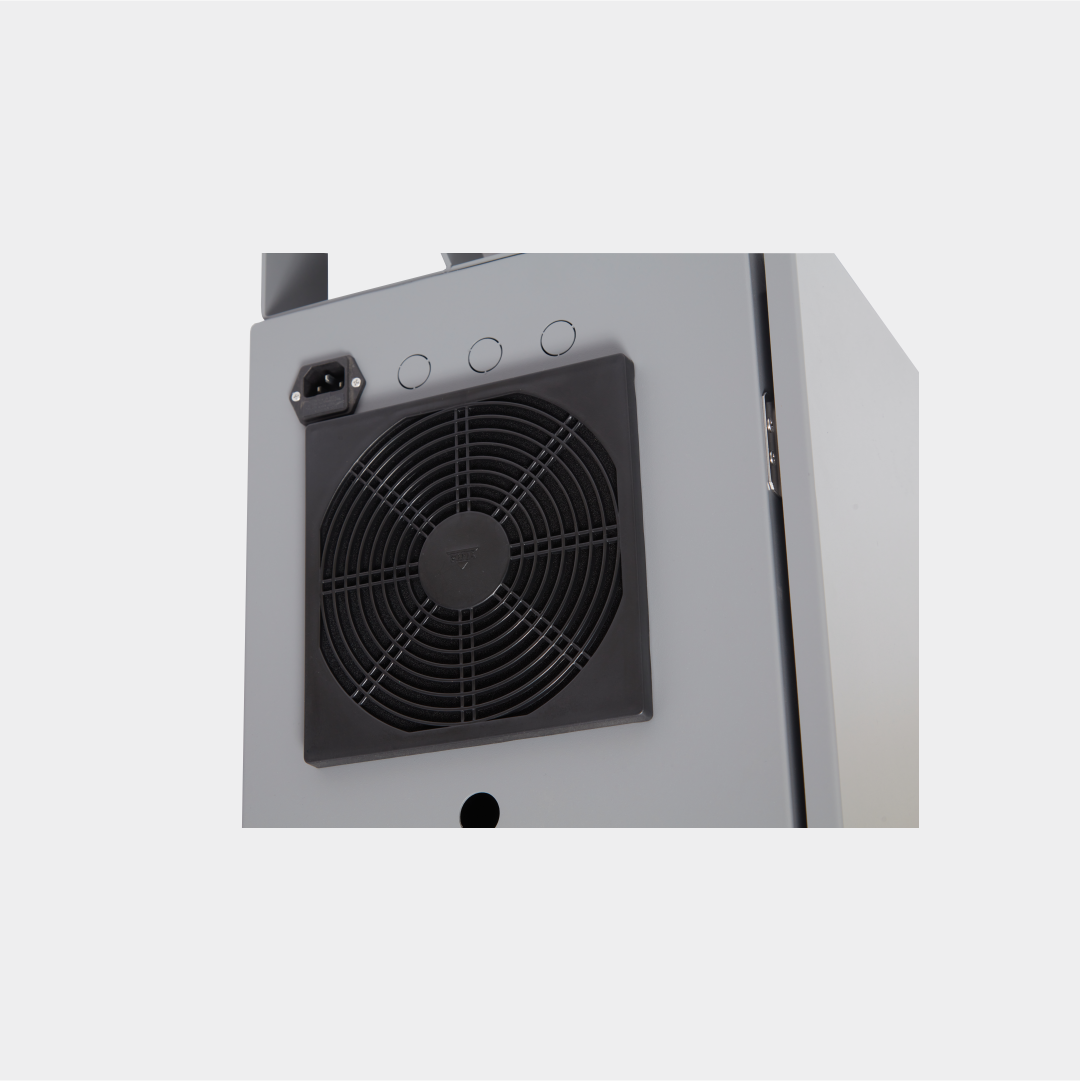

Air-cooled or water-cooled configurations available
Compact modular design

Technical Specification

Parameter	Specification
Ozone Output Range	5 – 300 g/h
Ozone Concentration	0 – 105 mg/L
Generation Method	Corona discharge
Feed Gas	Oxygen (from PSA generator or external supply)
Cooling	Air-cooled / water-cooled (model dependent)
Power Supply	220–380V / 50Hz

MODEL	OZONE OUTPUT (G/H)	OZONE CONCENTRATION (MG/L)	OXYGEN FLOW (L/MIN)	POWER SUPPLY	POWER (W)	INLET/OUTLET SIZE	DIMENSION (MM)	WEIGHT (KG)
AH-OZ-B3-05	5	0–50	1–2	220V / 50Hz	550	Ø6	600 × 300 × 1030	53
AH-OZ-B3-10	10	0–50	2–4	220V / 50Hz	650	Ø6	600 × 300 × 1030	53
AH-OZ-B3-15	15	0–80	3–5	220V / 50Hz	700	Ø6	600 × 300 × 1030	53
AH-OZ-B3-20	20	0–100	3–6	220V / 50Hz	850	Ø6	600 × 300 × 1030	55
AH-OZ-B3-30	30	0–105	4–7	220V / 50Hz	950	Ø6	600 × 300 × 1030	55
AH-OZ-B3-45	45	0–105	7–10	220V / 50Hz	1500	Ø8	600 × 300 × 1300	80
AH-OZ-B3-60	60	0–105	8–12	220V / 50Hz	1700	Ø8	600 × 500 × 1300	90
AH-OZ-B3-90	90	0–105	10–18	220V / 50Hz	2700	Ø8	700 × 700 × 1300	120
AH-OZ-B3-120	120	0–105	15–24	220V / 50Hz	3900	Ø8	785 × 700 × 1300	135
AH-OZ-B3-150	150	0–105	25–30	220V / 50Hz	4450	Ø10	780 × 700 × 1590	150
AH-OZ-B3-200	200	0–105	34–40	380V / 50Hz	6300	Ø12	1560 × 700 × 1350	200
AH-OZ-B3-250	250	0–105	41–50	380V / 50Hz	8100	Ø12	1600 × 700 × 1640	260
AH-OZ-B3-300	300	0–105	50–60	380V / 50Hz	9000	Ø12	1600 × 700 × 1640	300

Applications

Municipal water treatment and disinfection
Industrial wastewater treatment
Food and beverage processing sanitation
Swimming pool and aquatic facility treatment
Cooling tower water management
Odor control at treatment facilities
Textile and laundry water treatment
