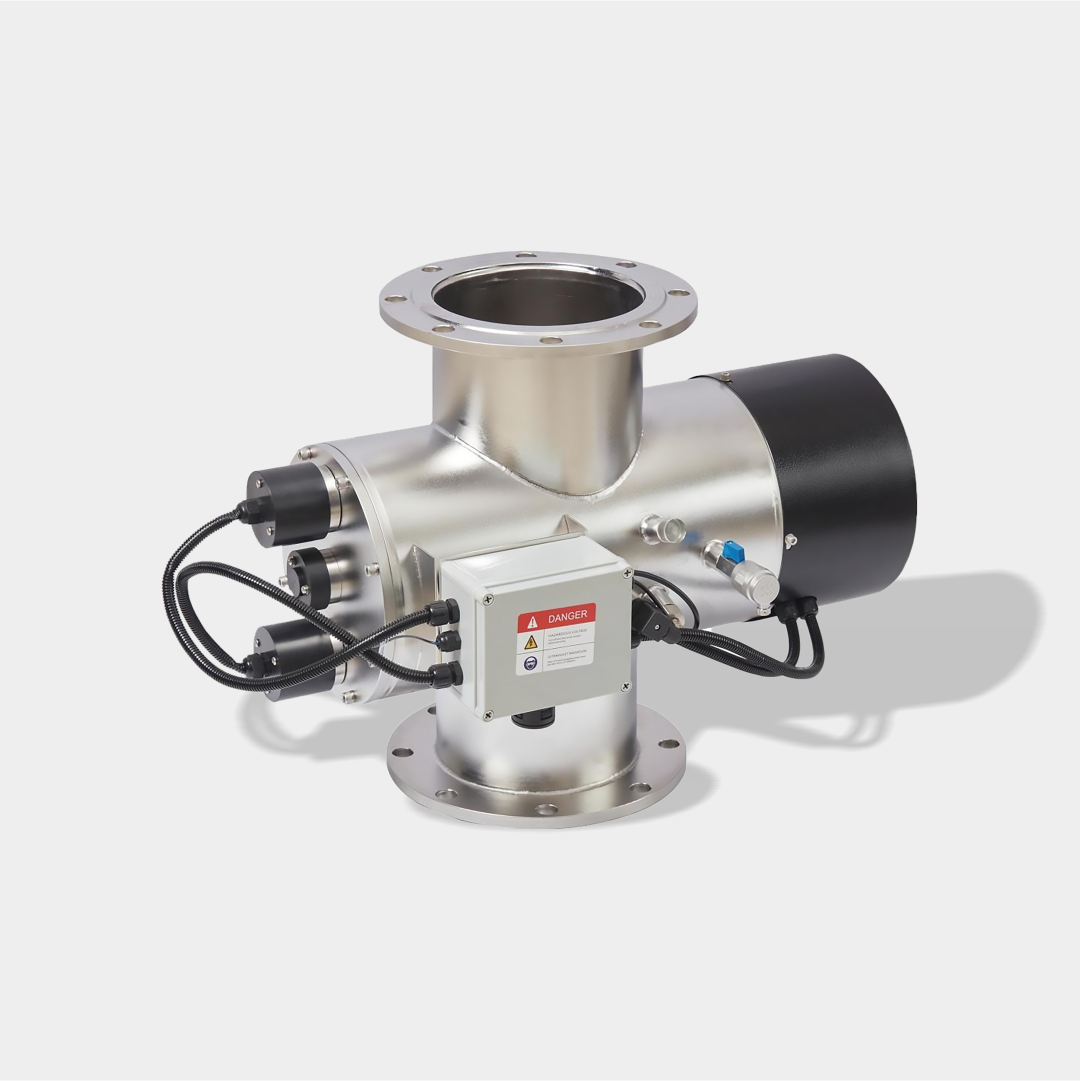

Medium Pressure UV Sterilizer

High-Intensity Polychromatic UV for Advanced Disinfection

Medium pressure UV sterilizers produce broad-spectrum (polychromatic) ultraviolet light with significantly higher intensity per lamp compared to low pressure systems. This makes them capable of delivering very high UV doses in compact reactor designs, ideal for applications where space is limited but high disinfection performance is required.

The polychromatic output is particularly effective for chloramine reduction and applications requiring photolysis of specific chemical compounds, in addition to standard microbial disinfection. Fewer lamps are needed compared to low pressure systems treating the same flow rate, simplifying maintenance and reducing the system footprint.

Key Features

Polychromatic (broad spectrum) UV output for enhanced treatment
High UV intensity per lamp — fewer lamps needed per system
Flow rates from 10 to 500 m³/h
Effective for chloramine reduction and photolysis applications
Compact reactor design with smaller footprint
UV lamp life of 5,000 to 7,500 hours
Stainless steel reactor construction
UV intensity monitoring and dose control

Technical Specification

MODEL	FLOW (M³/H)	LAMP POWER (KW)
AH–UV–M–018	18	0.5
AH–UV–M–040	40	1.0
AH–UV–M–085	85	2.0
AH–UV–M–145	145	3.0
AH–UV–M–200	200	2.0
AH–UV–M–300	300	3.0
AH–UV–M–475	475	3.0
AH–UV–M–650	650	3.0
AH–UV–M–825	825	3.0
AH–UV–M–1000	1000	3.0

MODEL	FLOW (M³/H)	LAMP POWER (KW)	NO. OF LAMPS	POWER SUPPLY	WORKING PRESSURE (MPA)	WATER TEMP (°C)	INLET/OUTLET SIZE	REACTOR MATERIAL	REACTOR SIZE (MM)
AH–UV–M–018	18	0.5	1	220V AC 50/60Hz	0–0.7	5–50	DN100	SS316L	550 × 380 × 419
AH–UV–M–040	40	1.0	1	220V AC 50/60Hz	0–0.7	5–50	DN100	SS316L	620 × 380 × 419
AH–UV–M–085	85	2.0	1	380V AC 50/60Hz	0–0.7	5–50	DN150	SS316L	730 × 435 × 541
AH–UV–M–145	145	3.0	1	380V AC 50/60Hz	0–0.7	5–50	DN150	SS316L	720 × 580 × 541
AH–UV–M–200	200	2.0	2	380V AC 50/60Hz	0–0.7	5–50	DN200	SS316L	730 × 435 × 541
AH–UV–M–300	300	3.0	2	380V AC 50/60Hz	0–0.7	5–50	DN250	SS316L	730 × 515 × 585
AH–UV–M–475	475	3.0	3	380V AC 50/60Hz	0–0.7	5–50	DN300	SS316L	730 × 515 × 585
AH–UV–M–650	650	3.0	4	380V AC 50/60Hz	0–0.7	5–50	DN350	SS316L	730 × 515 × 585
AH–UV–M–825	825	3.0	5	380V AC 50/60Hz	0–0.7	5–50	DN350	SS316L	780 × 550 × 585
AH–UV–M–1000	1000	3.0	6	380V AC 50/60Hz	0–0.7	5–50	DN400	SS316L	780 × 550 × 586

Applications

Municipal drinking water — chloramine reduction
Swimming pool and aquatic facility water treatment
Industrial process water requiring high UV dose
Beverage and bottling plant water treatment
Wastewater treatment requiring photolysis
Large-scale commercial water systems
