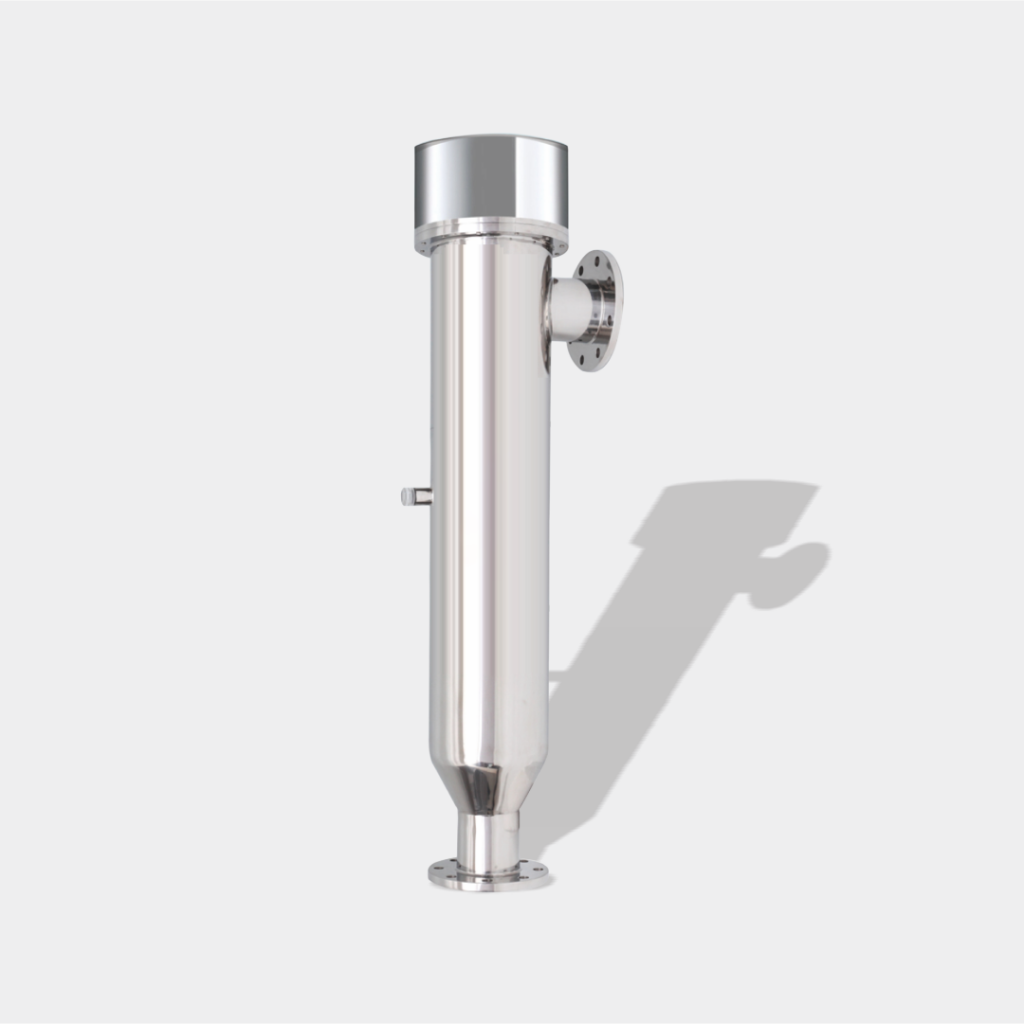

T-Series UV System
TOC Reduction for Ultrapure Water Applications
The T-Series is a specialized low pressure UV system designed for Total Organic Carbon (TOC) reduction in ultrapure water production. Built with pharmaceutical-grade SS316L stainless steel and precision surface finishes of RA ≤ 0.20 μm, the T-Series meets the demanding requirements of semiconductor, pharmaceutical, and high-purity laboratory water systems.
By generating high-energy UV light at 185 nm in addition to the standard 254 nm germicidal wavelength, the T-Series breaks down organic carbon molecules, reducing TOC levels to meet the strictest purity standards.
Key Features
Technical Specification
Parameter |
Specification |
|---|---|
|
Flow Rate Range |
6 to 59 m³/h |
|
UV Wavelength |
185 nm + 254 nm |
|
Primary Function |
TOC reduction + disinfection |
|
Lamp Life |
Up to 9,000 hours |
|
Chamber Material |
SS316L stainless steel |
|
Surface Finish |
RA ≤ 0.20 μm |
|
Connections |
Sanitary / tri-clamp |
|
Power Supply |
220V / 50Hz |
| MODEL | FLOW RATE (M³/H) |
LAMP POWER (W) |
NO. OF LAMPS | POWER SUPPLY | INLET/OUTLET CONNECTION |
|---|---|---|---|---|---|
| AH–UV–L–T40–2U | 6 | 40 | 2 | 220VAC, 50/60Hz | Thread DN40 |
| AH–UV–L–T40–3U | 10 | 40 | 3 | 220VAC, 50/60Hz | DN50 |
| AH–UV–L–T80–2U | 12 | 80 | 2 | 220VAC, 50/60Hz | DN50 |
| AH–UV–L–T80–3U | 18 | 80 | 3 | 220VAC, 50/60Hz | DN65 |
| AH–UV–L–T80–4U | 25 | 80 | 4 | 220VAC, 50/60Hz | DN80 |
| AH–UV–L–T80–5U | 30 | 80 | 5 | 220VAC, 50/60Hz | DN80 |
| AH–UV–L–T80–6U | 35 | 80 | 6 | 220VAC, 50/60Hz | DN80 |
| AH–UV–L–T120–4U | 35 | 120 | 4 | 220VAC, 50/60Hz | DN80 |
| AH–UV–L–T120–5U | 43 | 120 | 5 | 220VAC, 50/60Hz | DN100 |
| AH–UV–L–T120–6U | 51 | 120 | 6 | 220VAC, 50/60Hz | DN100 |
| AH–UV–L–T120–7U | 59 | 120 | 7 | 220VAC, 50/60Hz | DN100 |
